Multi-product

This package makes it possible to create a product of any number of models. That is done by creating the combination of 2 models, than recursively combining the result with the next model or another product.

Generics and multi-types

To make sure the models to be made a product of can really work together (mainly that they are in the same domain), generics are widely used in every class and function of this package. In theta, domain is usually bound by the state and precision types, e.g. ExplState and ExplPrec. Specific models encapsulate these types and put their structural information on top, like CfaState<ExplState> and CfaPrec<ExplPrec>.

In this package, the latter complex types bear no special names. If they are stripped from their domain information, and have only their structural (e.g. CfaState<UnitState>, CfaPrec<UnitPrec>), they are called control. The domain-independent information, that must be common between the two sides, are called data. So the unified naming convention is the following for generic types: (side)(part)(type) where - side: L, R or blank. L for left and R for right, omitted if the class containing the generic is related to a single side only - part: Control, data or blank as described as above - type: State or Prec. State can be omitted (used usually for control states)

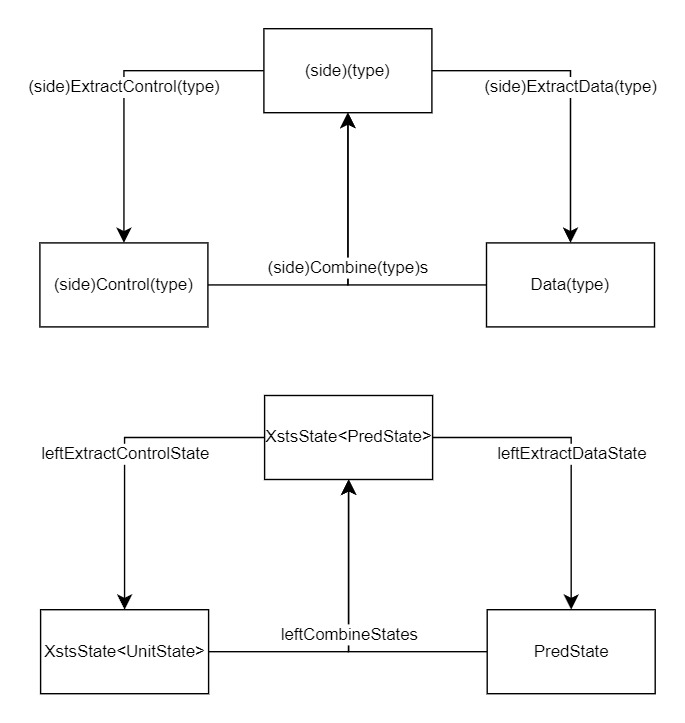

The transformation between these types are handled by functions, for which the same rule applies and work the following way:

On the bottom diagram you can see a concrete example of XstsState.

Every standard building block of theta (State, Action, Prec, Analysis, LTS) ha a multi counterpart. They are all abstract, and currently only have a single implementation (Expr and Stmt). But to be able to support additional ones in the future, without possibly mixing them up, these are also bound by generics.

Summarizing the above using a CFA and xCFA in the explicit domain as an example:

Generic name	Description	Example
LState	The original state of the left formalism	CfaState<ExplState>
RState	The original state of the right formalism	XcfaState<ExplState>
DataState	The domain specific state without any structure of models	ExplState
LControl	State type containing only the structural information of the left model	CfaState<UnitState>
RControl	State type containing only the structural information of the right model	XcfaState<UnitState>
LAction	Action type of the left formalism	CfaAction
RAction	Action type of the right formalism	XcfaAction
LPrec	Original precision type of the left formalism	CfaPrec<ExplPrec>
RPrec	Original precision type of the right formalism	XcfaPrec<ExplPrec>
DataPrec	Precision type of the domain	ExplPrec
LControlPrec	Precision type of the left formalism with only the model structure specific information	CfaPrec<UnitPrec>
RControlPrec	Precision type of the right formalism with only the model structure specific information	XcfaPrec<UnitPrec>
MState	The type of the used multi state - currently only ExprMultiState	ExprMultiState<CfaState<ExplState>, XcfaState<ExplState>, ExplState>
MControlState	The same as above but with the blank state generic parameters	ExprMultiState<CfaState<UnitState>, XcfaState<UnitState>, ExplState>
MAction	The type of the used multi action - currently only StmtMultiAction	StmtMultiAction<CfaAction, XcfaAction>
MAnalysis	The type of the used multi analaysis - currently only StmtMultiAnalysis	StmtMultiAnalysis<...>
MLts	The type of the used multi LTS - currently only StmtMultiLts	StmtMultiLts<...>

MultiAnalysis

Initial function

MultiInitFunc works in a rather simple way. It requires the two control init functions, and a data init function. It calls all three, than creates MultiStates with the descartes product of the results. The source side is null in initial MultiStates.

Transfer function

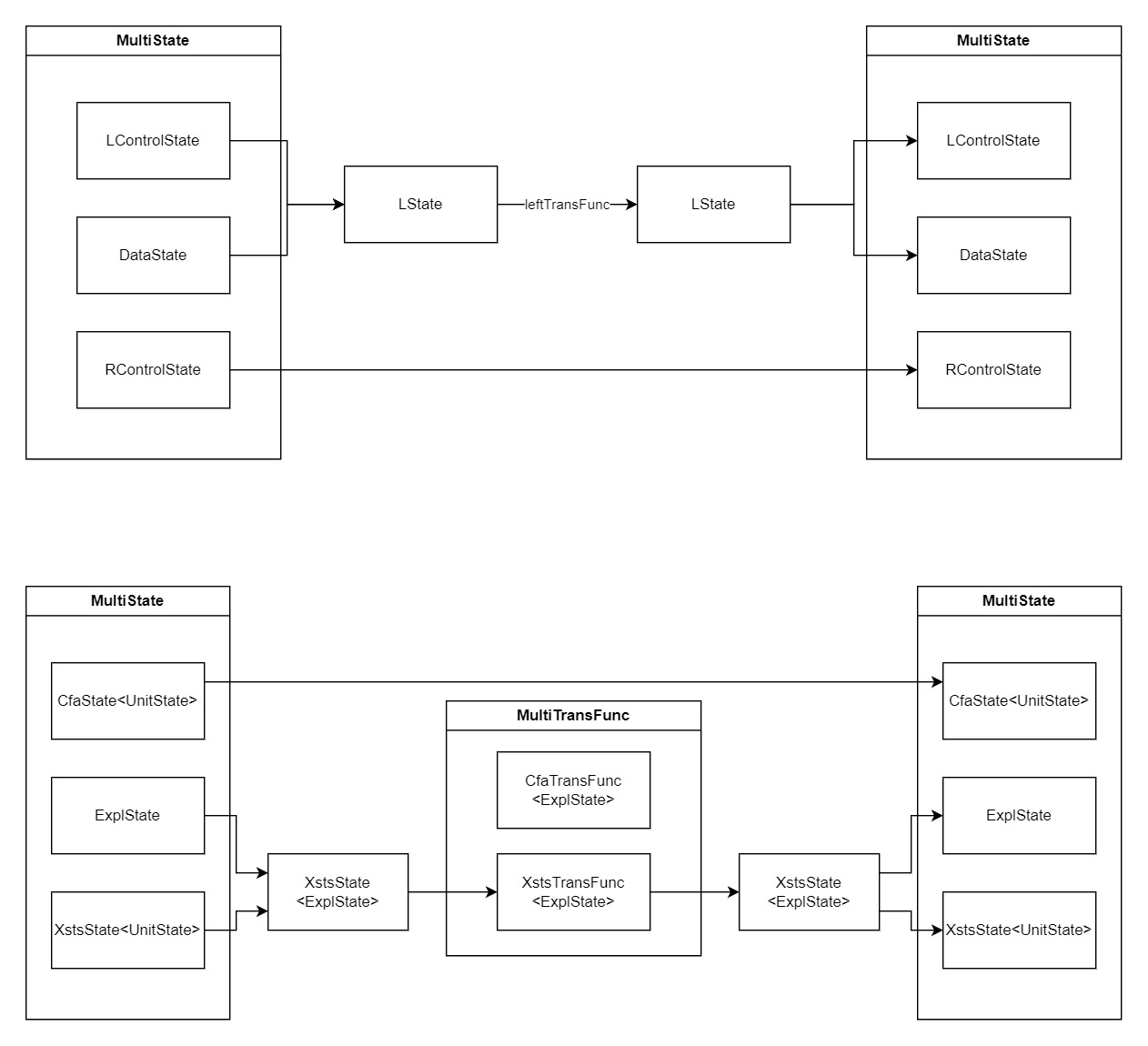

The MultiTransFunc encompasses two whole transfer functions (which operate on complex states). When the left formalism is set to take the next step, the left control state and the data state from the multistate are combined into a left state, which now the left transfer function can process. From the result left state are then the control and data states extracted, and a new multi state is created with them and the right control state from the earlier multistate. This can be seen on the following picture, than a concrete example with a product of a CFA and XSTS.

Usage

Products should be created by using the StmtMultiBuilder class. After this, the StmtMultiConfigBuilder can be used to run safety checking on the product.

You can find examples in the test module of the package, e.g. MultiNondetDiningPhilosophersTest.

Order of product creation

The stepping order of the model is defined by a function on each composition level, so the order in which the models are added to the product should be set keeping that in mind.

Let's say for example we want to create the product of three models A, B and C and want them to take action in the following way:
A → B → A → C → A → B → A → C....

The recommended order in that case would be to first create the product of B and C, and combine the result with A. This keeps the functions defining the next stepping model clean: just use NextSideFunctions.Alternating twice.
